Description

This Twyford Thermostatic Single-Lever Shower Mixer is designed for public and semi-public washrooms, healthcare environments, and high-traffic commercial applications.

Engineered for precision, safety, and durability, this WRAS and TMV3-approved shower valve ensures consistent water temperature and optimal performance under varying conditions.

With its chrome-plated finish, surface-mounted design, and bottom outlet, this shower mixer offers practicality — ideal for connecting to exposed shower risers or flexible hoses.

Key Features:

• Thermostatic temperature control: Maintains stable water temperature within ±2°C, automatically shutting off in the event of hot or cold water failure
• Single-lever operation: Simple one-handed control for temperature and flow adjustment
• Bottom outlet connection (½" BSP): Perfect for riser rail or fixed head shower configurations
• TMV3 & WRAS approved: Independently tested for compliance with NHS D08 and BS 7942:2000
• Durable chrome finish: Corrosion-resistant, easy to clean
• Anti-scald protection: Factory-set maximum outlet temperature of 38°C (adjustable on installation)
• Universal installation: Suitable for gravity, pumped, and unvented systems, as well as modulating combination boilers
• Easy maintenance: Front-serviced thermostatic cartridge for quick access and replacement
• Public use design: Robust, hygienic, and compliant with Care Standards Act 2000 temperature safety limits
• Made by Twyford with over 160 years of innovation

Technical Specifications:

• Finish: Chrome
• Mounting Type: Surface Mounted
• Inlet Connections: 15mmØ copper pipe
• Hose Connection: ½" BSP
• Material: Durable chrome-plated brass and ABS
• Operating Pressure: 0.5-10 Bar
• Flow Rate: 18.6 Litres Per Minute
• Factory Preset Temperature: 38°C

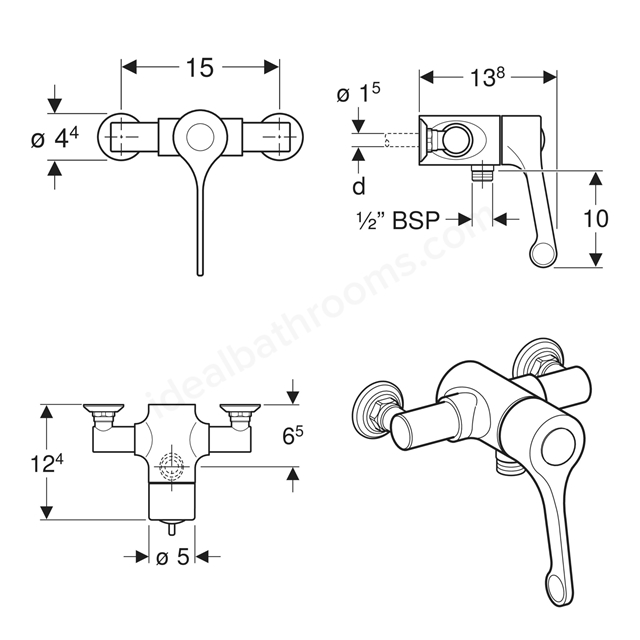

• Width:155mm
• Depth: 138mm

Compliance & Standards

• TMV3 approved for healthcare and commercial safety compliance
• WRAS approved for water regulation conformity
• Meets BS 7942:2000 and NHS Model Engineering Specification D08
• Anti-scald safety compliant with Care Standards Act 2000

Perfect For:

• Hospitals and healthcare facilities
• Schools, universities, and sports centres
• Hotels, gyms, and leisure clubs
• Public washrooms and commercial buildings
• Accessible or assisted-use bathrooms

Key Features

• Public Use Design
• Thermostatic Temperature Control
• Bottom Outlet Connection (½" BSP)
• TMV3 & WRAS Approved
• Anti-Scald Protection

Specification
