Description

This Sola Thermostatic Basin Mixer is purpose-built for safety-critical environments such as hospitals, schools, and public facilities with safe-touch temperature control.

It combines modern design with precise thermostatic control, ensuring user protection from scalding while maintaining reliable water flow even in challenging plumbing systems.

Deck-Mounted it fits single-hole basins and washtops in commercial or residential settings.

Key Features:

• Thermostatic Safety Control – Pre-set at 38°C for safe use in public, semi-public and healthcare washrooms
• Single-Lever, Easy Operation – Smooth control for temperature and flow
• TMV3 & WRAS Approved – Fully compliant with NHS D08 and UK Water Supply Regulations
• Durable Build – Solid brass body with high-quality chrome finish
• Water-Saving Aerator – Flow regulated to 3.8 l/min at 3 bar
• Copper Inlet Tails (350mm) – Robust and durable; supplied with check valves, filters & isolation valves for compliance and easy installation
• Wide Compatibility – Works with gravity-fed, fully pumped, modulating combi boiler and unvented systems
• Maintenance Friendly – Replaceable thermostatic cartridge and simple recalibration process

Compliance & Safety:

• TMV3 certified – Suitable for healthcare, care homes, and public buildings
• WRAS approved – Meets UK water safety standards
• Fail-safe shutoff – Stops mixed flow instantly if either supply fails
• Preset to 38°C but can be calibrated to your system’s conditions

Perfect For:

• Healthcare & NHS facilities
• Schools & nurseries
• Offices & public washrooms
• Homes needing extra safety (elderly & children)

Installation Notes:

• Designed for one-hole basins
• Includes check valves & isolation valves for safe installation
• Hot inlet connects on the left, cold on the right (when facing the tap)
• Fully serviceable with easy access for cartridge replacement & recalibration

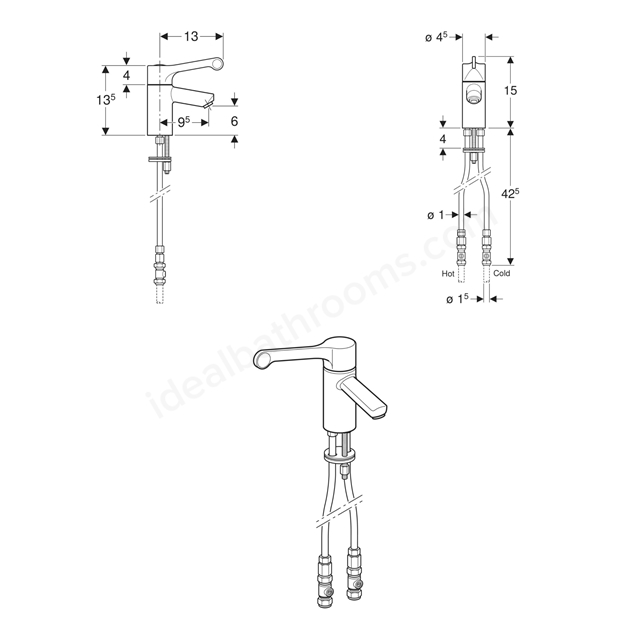

Technical Specifications:

• Mounting: Deck-mounted, single-hole
• Operation: Single lever with thermostatic mixer
• Height: 150mm
• Depth: 152mm
• Approvals: TMV3 & WRAS certified
• Body Material: Brass
• Max Hot Water Temp: 85°C
• Outlet Temp Range: 30°C – 50°C (preset 38°C)
• Operating Pressure: 0.5 – 10 bar (recommended 1–5 bar)
• Max Static Pressure: 12 bar
• Max Inlet Pressure (Dynamic): 5 bar
• Max Pressure Ratio: 5:1
• Flow Rate @ 3 bar: 3.8 L/min
• Inlet Connections: 350mm copper tails with integral filters & check valves
• Dimensions: Ø45mm body

Key Features

• Thermostatic Safety Control
• TMV3 & WRAS Approved
• Water-Saving Aerator
• Single-Lever, Easy Operation
• For Healthcare Environments

Specification
